Plant Design
Structural Design - Valve Access (BHP Billiton / Roxby Down - 2011 )
The aim of the project was to develop 3D Model to provide structural design concept for the access platforms, landings and stairs
to replace
scaffolding in order to access 2 valves located about 8.5m above ground.

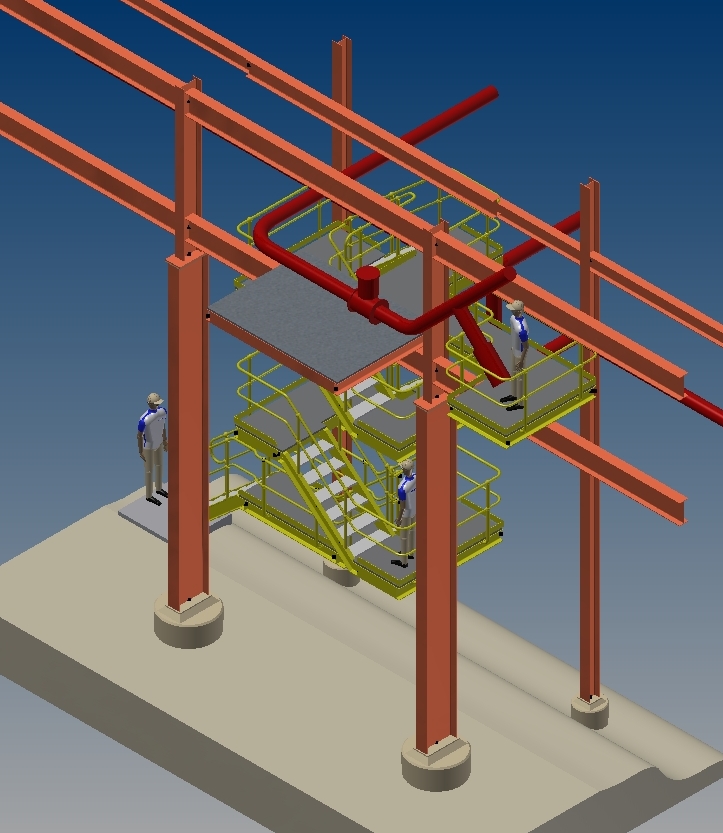

Model -Valve Access / Structural design (Autodesk Inventor)

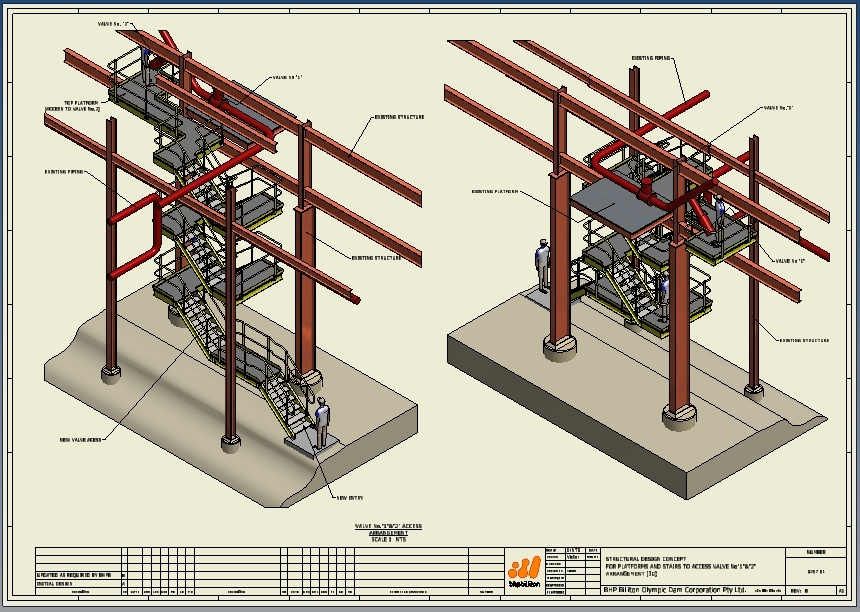

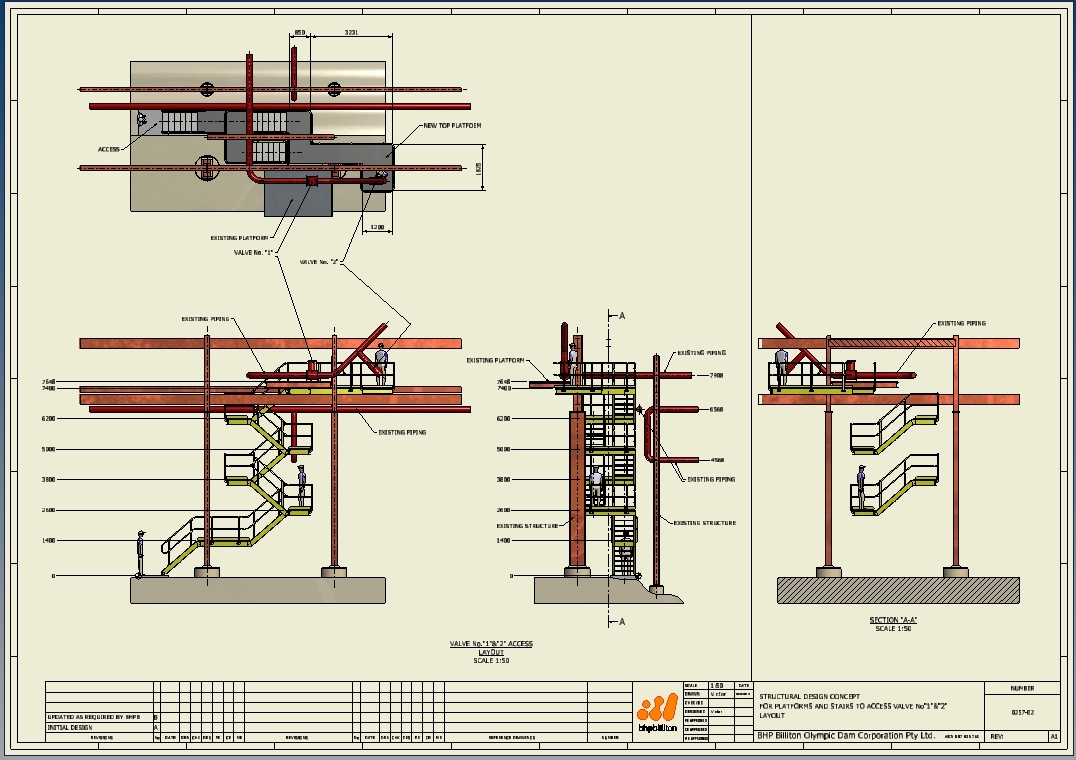

General Arrangement
