Gas Train Isolation

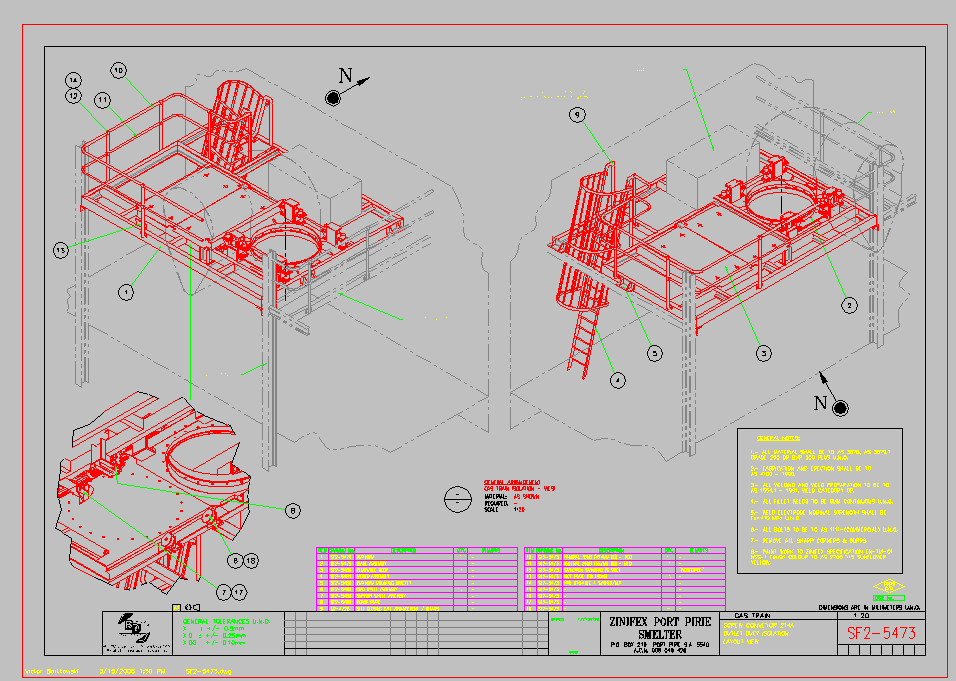

Gas Train Isolation is a motor driven /pneumatically / spring operated 1.2m diameter valve . It was designed to stop / open the flow of the gas / particles from Zink Plant in order to enable operation of the plant while the repairs are being carried out
Design completed for Zinifex Port Pirie in 2003.

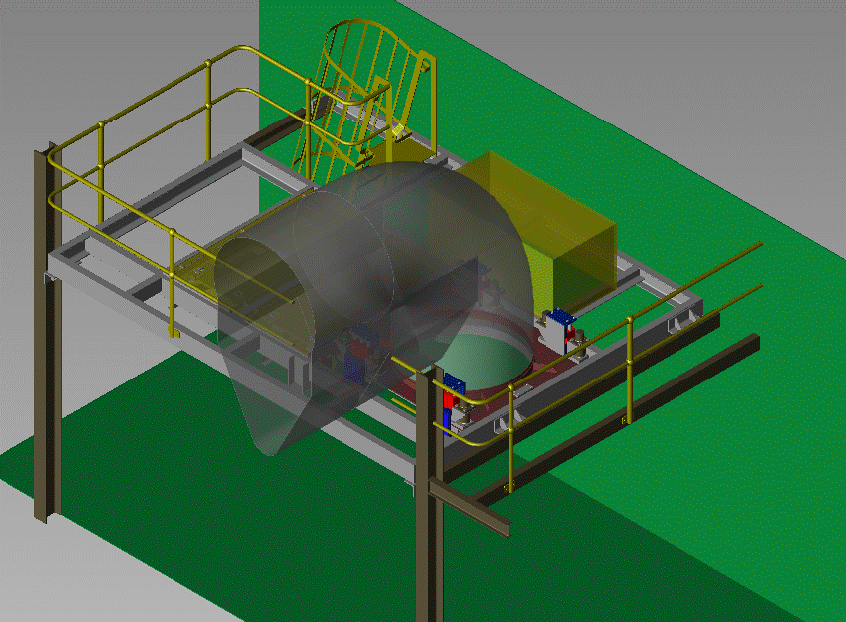

Model - Autodesk Inventor:
